Buffer Tank Sunsystem, Model P 3000, Capacity 3000L, Industrial Vessel



Rupture de stock



Buffer Tank Sunsystem, Model P 3000, Capacity 3000L, Industrial Vessel
Saving energy and money is achieved using buffer vessels of the Sunsystem PR series in the central heating system.
- Stock: Rupture de stock
- Marque: Sunsystem
- SKU: 01.409.008
€ 2 690,00
TTC
Prix hors taxes : € 2 241,67
Économisez 5% par virement bancaire.
DÉLAI DE LIVRAISON ESTIMÉ
31.May.2025
Voir la politique d'expédition


Retour gratuit
60 joursVoir les détails
Nous acceptons les paiements
Voir les détails
Accumulates the heat generated by solid fuel boiler, solar heater, heat pump or any other source; recommended for every central heating system.
Ensures the optimum operation and efficiency of a solid fuel boiler, permitting the functioning at nominal power output, even when the heating of the premisses does not require all the heat energy produced thereby.
Produced heat is accumulated and stored inside the buffer tank like hot water and can be used even when the boiler itself has cooled down.
Produced heat is accumulated and stored inside the buffer tank like hot water and can be used even when the boiler itself has cooled down.
Modifications and sizes, in liters:
300, 500, 800, 1000, 1500, 2000, 2500, 3000, 5000
Product features:
- Removable high efficiency insulation with thickness 100 mm and outer casing of PVC with RAL 9006 color
- Multi-position mounting of temperature sensor
- Primer coated on the outside of the tank
- All threads are internal
- inlet / Outlet connections - at 180 degrees
- Easy installation
- Optional kit for electric heating with nominal power 3kW, 4.5kW, 6kW or 7.5kW

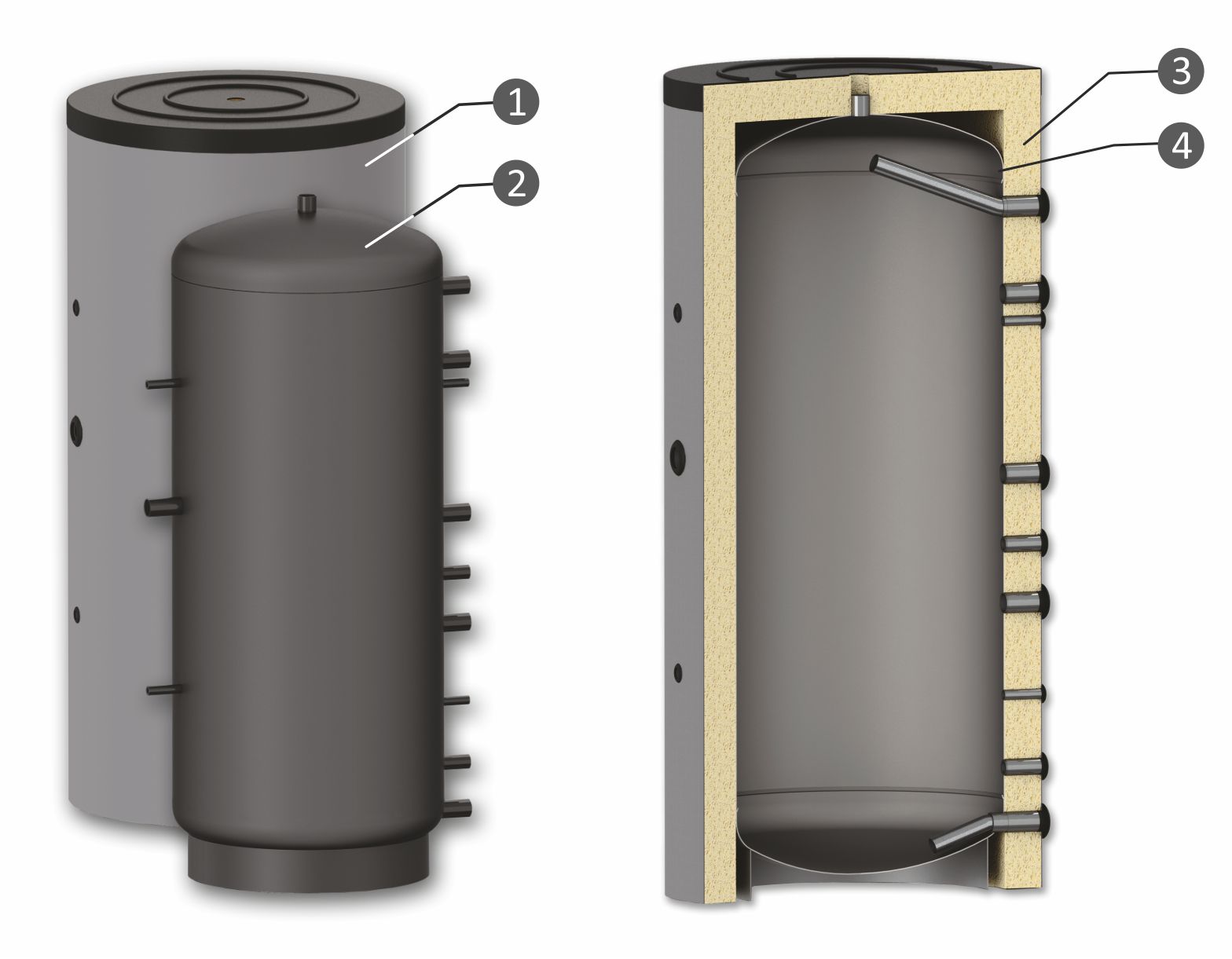

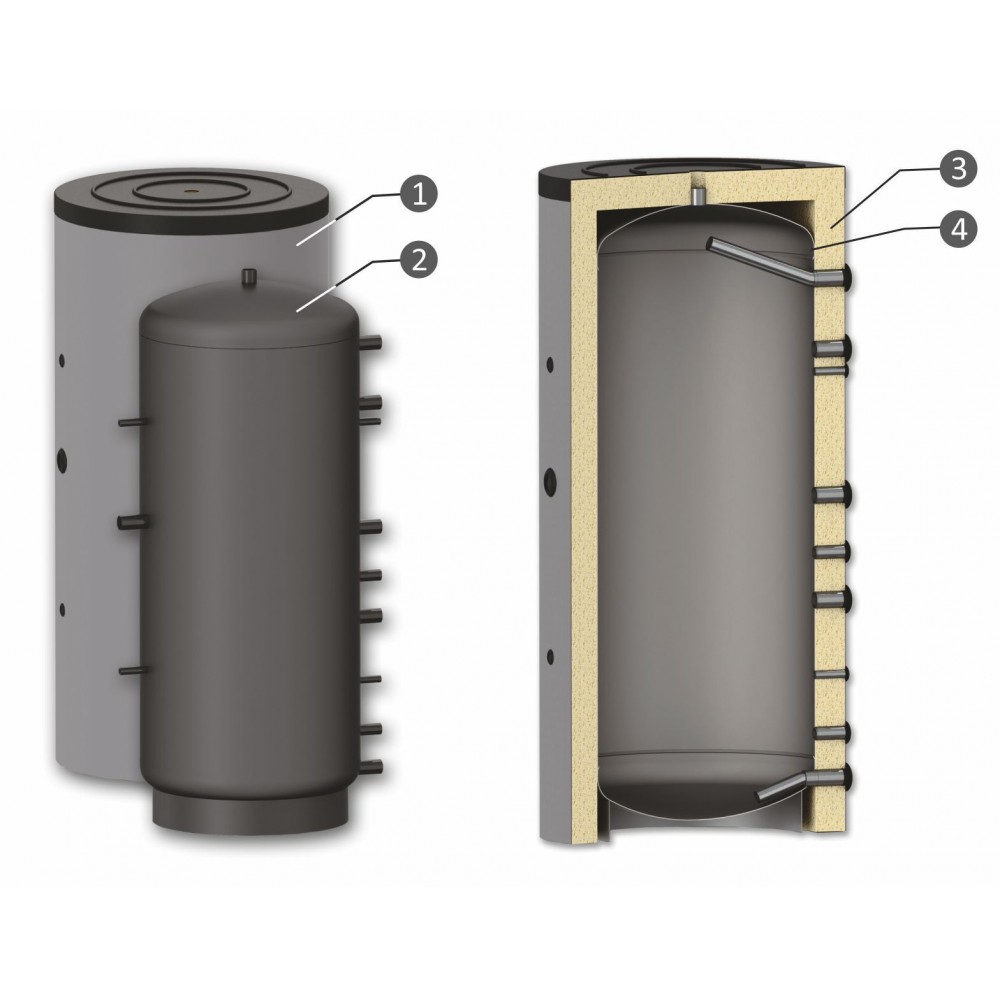

1. Aesthetic PVC jacket with color RAL 9006
2. Primer coated outer surface
3. Removable insulation
4. Water tank of low-carbon steel
Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:
Class E - capacity from 300 to 500 Liters;
Class Е - capacity from 800 to 1000 Liters;
Characteristics | |
Poids (kg) | 520.0000 |
Pays de fabrication | Bulgaria |
Hauteur (mm) | 2295 |
Garantie | 2 Years |
Certification | CE |
Thermomètre | Optional |
Capacité/Contenu en eau (L) | 3000 |
Installation | Free standing |
Serpentin d`échangeur de chaleur | No heat exchanger |
Hauteur sans isolation (mm) | 2245 |
Diamètre (mm) | 1600 |
Diamètre sans isolation (mm) | 1400 |
Hauteur minimale requise (mm) | 2386 |
Poids de l`isolation (kg) | 35 |
Température de fonctionnement maximale du réservoir tampon (°C) | 95 |
Manchon de capteur A (mm) | G 1/2'' / 908 |
Élément chauffant électrique B (mm) | G 1 1/2'' / 1182 |
Manchon de capteur C (mm) | G 1/2'' / 1658 |
Manchon de purge D (mm) | G 1 1/2'' / 2245 |
Porte-chaleur de la chaudière E (mm) | G 1 1/2'' / 1795 |
Manchon de capteur G (mm) | G 1/2'' / 1588 |
Porte-chaleur de la chaudière H (mm) | G 1 1/2'' / 1686 |
Porte-chaleur de la chaudière J (mm) | G 1 1/2'' / 1472 |
Entrée de porteur de chaleur L (mm) | G 1'' / 1080 |
Porte-chaleur de la chaudière M (mm) | G 1 1/2'' / 862 |
Manchon de capteur N (mm) | G 1/2'' / 608 |
Sortie de porteur de chaleur O (mm) | G 1'' / 475 |
Sortie de porte-chaleur de la chaudière P (mm) | G 1 1/2'' / 342 |
Pression de fonctionnement du réservoir tampon (bar) | 3 |
