Buffer Tank Sunsystem, Model P 1500, Capacity 1500L, Industrial Vessel

Saving energy and money is achieved using buffer vessels of the Sunsystem P series in the central heating system.

  • Stock: En stock
  • Marque: Sunsystem
  • SKU: 01.409.005
€ 1 549,10
TTC
Prix hors taxes : € 1 290,92

     Économisez  5%   par virement bancaire.

DÉLAI DE LIVRAISON ESTIMÉ
20.Jun.2025
DHL Schenker
Voir la politique d'expédition

Retour gratuit
​​​​60 joursVoir les détails

Nous acceptons les paiements
    Voir les détails

Accumulates the heat generated by solid fuel boiler, solar heater, heat pump or any other source; recommended for every central heating system.
Ensures the optimum operation and efficiency of a solid fuel boiler, permitting the functioning at nominal power output, even when the heating of the premisses does not require all the heat energy produced thereby.
Produced heat is accumulated and stored inside the buffer tank like hot water and can be used even when the boiler itself has cooled down.


Modifications and sizes, in liters:
300, 500, 800, 1000, 1500, 2000, 2500, 3000, 5000


Product  features:

  • Removable high efficiency insulation with thickness 100 mm and outer casing of PVC with RAL 9006 color
  • Multi-position mounting of temperature sensor
  • Primer coated on the outside of the tank
  • All threads are internal
  • inlet / Outlet connections - at 180 degrees
  • Easy installation
  • Optional kit for electric heating with nominal power  3kW, 4.5kW, 6kW or 7.5kW

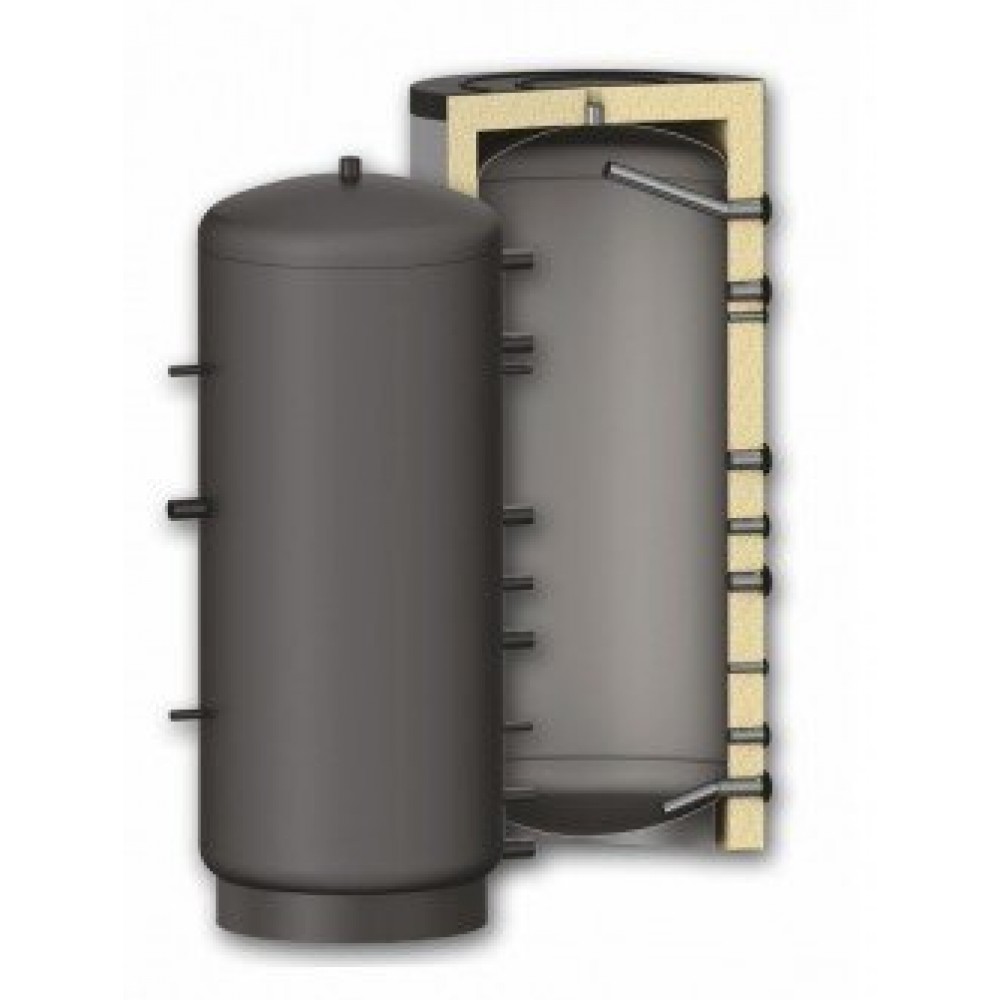

1. Aesthetic PVC jacket with color RAL 9006
2. Primer coated outer surface
3. Removable insulation
4. Water tank of low-carbon steel









Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:


Class E - capacity from 300 to 500 Liters;
Class Е - capacity from 800 to 1000 Liters;







Characteristics
Poids (kg) 274.0000
Pays de fabrication Bulgaria
Hauteur (mm) 2220
Garantie 2 Years
Thermomètre Optional
Capacité/Contenu en eau (L) 1500
Installation Free standing
Serpentin d`échangeur de chaleur No heat exchanger
Hauteur sans isolation (mm) 2170
Diamètre (mm) 1200
Diamètre sans isolation (mm) 1000
Hauteur minimale requise (mm) 2220
Poids de l`isolation (kg) 23.2

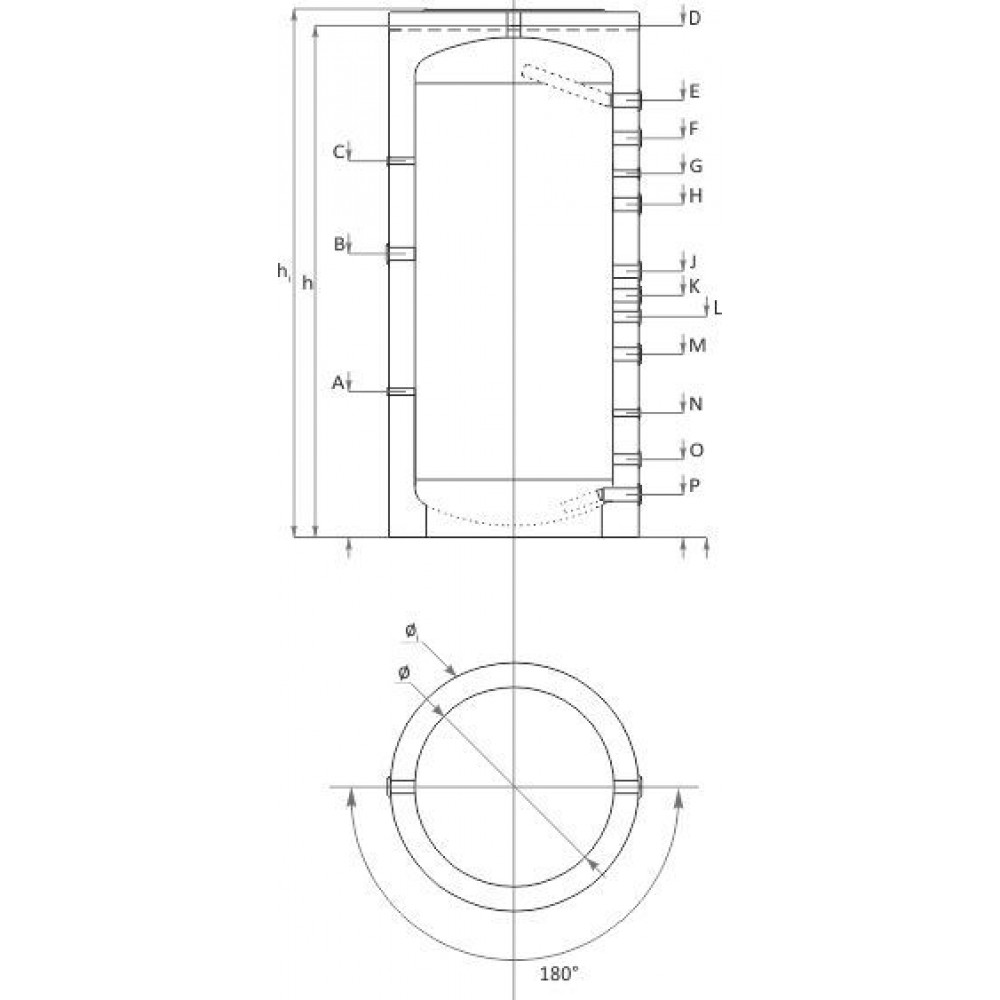

Élément chauffant électrique B (mm) G 1 1/2'' / 1130
Manchon de capteur C (mm) G 1/2'' / 1500
Manchon de purge D (mm) G 1 1/2'' / 2170
Porte-chaleur de la chaudière E (mm) G 1 1/2'' / 1808
Manchon de capteur G (mm) G 1/2'' / 1525
Porte-chaleur de la chaudière H (mm) G 1 1/2'' / 1305
Porte-chaleur de la chaudière J (mm) G 1 1/2'' / 1085
Entrée de porteur de chaleur L (mm) G 1'' / 895
Porte-chaleur de la chaudière M (mm) G 1 1/2'' / 765
Manchon de capteur N (mm) G 1/2'' / 520
Sortie de porteur de chaleur O (mm) G 1'' / 375
Température maximale de fonctionnement de la bobine (°C) 95
Entrée de porteur de chaleur F (mm) G 1 1/2'' / 1635
Sortie de porte-chaleur de la chaudière P (mm) G 1 1/2'' / 235
Pression de fonctionnement du réservoir tampon (bar) 3
Manchon supplémentaire K (mm) G 1/2'' / 975
